LASERLINER PowerPlane-Laser 3G Multi-18V
LASERLINER PowerPlane-Laser 3G Multi-18V
Couldn't load pickup availability
Description: This three-dimensional laser projects one horizontal and two vertical laser circles, perfect for precise alignment of objects throughout the room. Thanks to the green laser technology with the PowerGreen++ brightness classification, perfect visibility is ensured even in poor lighting conditions. Thanks to the PowerAdapter available separately, the laser is compatible with the 18V battery systems of various well-known manufacturers. This means that the user can perfectly incorporate the laser in his existing tools, enabling a seamless and efficient use.
Three extremely bright green laser circles with excellent visibility of up to 60 meters

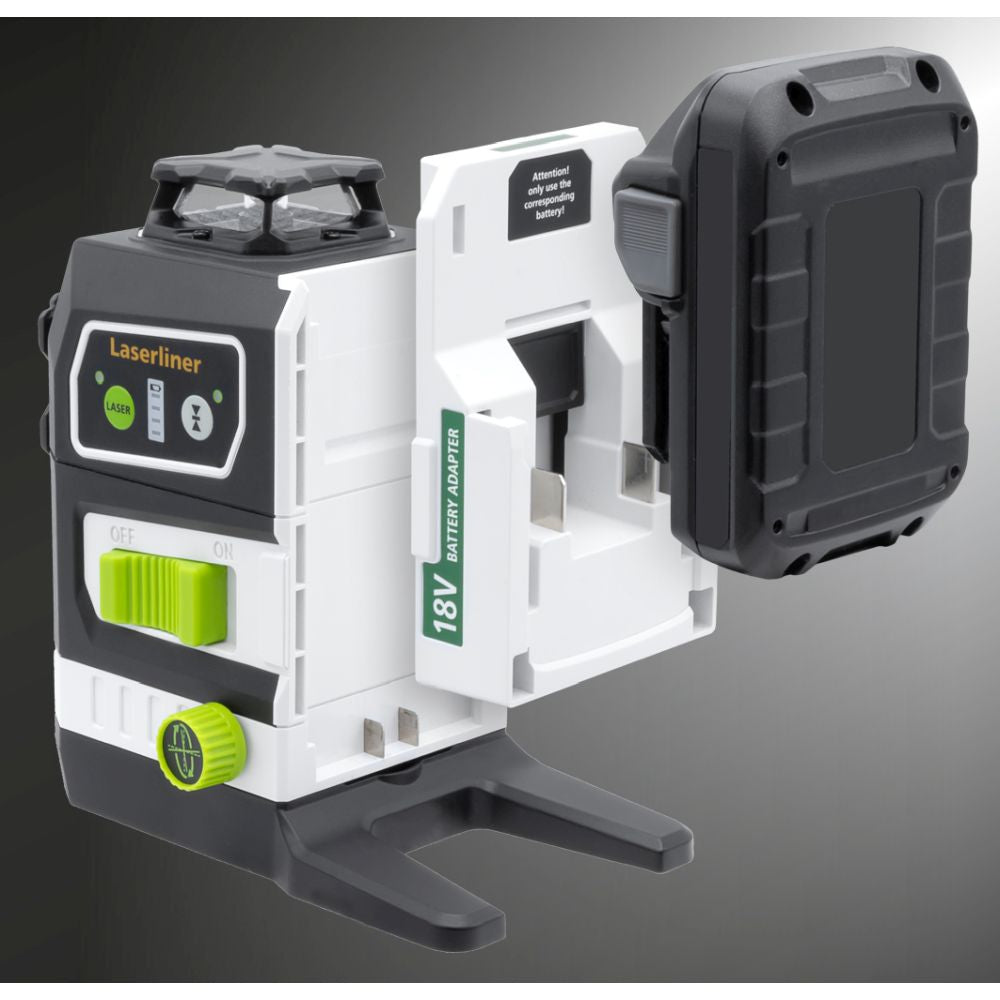

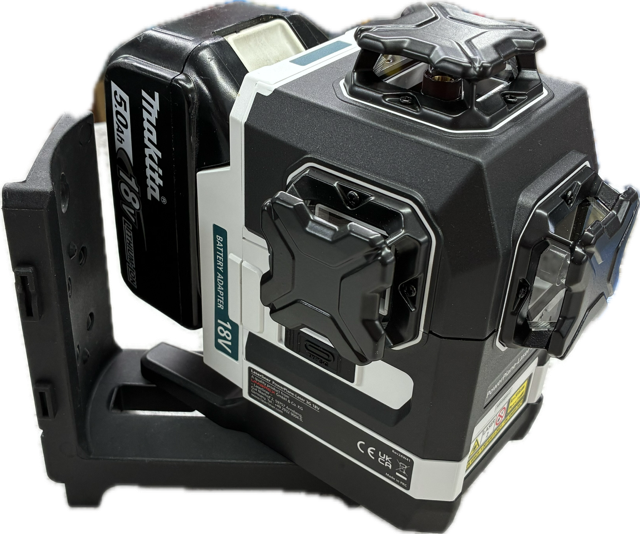

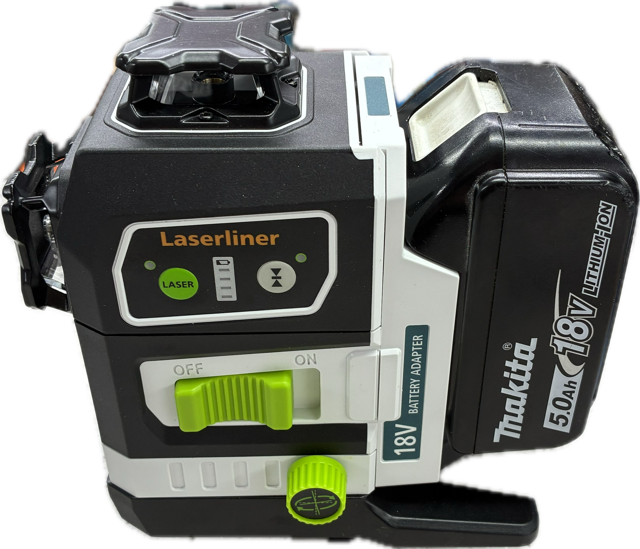

Compatibility with 18V battery systems: Works with 18V batteries from various well-known manufacturers thanks to separately available PowerAdapters
Efficient use: Be choosing the right adapter, the laser can be seamlessly integrated in the customer's existing 18V peripheral systems
Easy alignment of slopes with manual tilt function
Individually switchable laser circles
Plumb function for synchronous working on floor and ceiling
MicroControl: High-precision adjustment of the vertical laser lines via lateral fine adjustment without having to move the laser itself
CentrePoint: When using the vernier adjustment mechanism, the positions of the upper and lower laser crosses, which form the plumb points, remain unchanged
Can also run on mains power
Sturdy aluminium foot with exemplary stability
Time-saving automatic alignment
Integrated handheld receiver mode for outdoor applications and long ranges
Pendulum restraint for safe transport
With 1/4" thread
With 5/8" thread
Magnetic clamp and wall bracket provides versatile attachment without damaging surfaces
Ideal for mounting horizontally and vertically on drywall construction profiles
Strong magnetic clamps for attaching to metal surfaces
Horizontal/vertical levelling ✅
Manual slope function ✅
Battery and mains operation ✅
Replaceable battery system ✅
Hand receiver mode ✅
Self-Levelling Range ± 3.5° (horizontal)
Accuracy ± 0.2 mm / m
Levelling horizontal / vertical automatic
Visibility (Typical)* 60 m
Laser Wavelength 515 nm
Laser Class 2 / < 1 mW (EN 60825-1:2014/A11:2021 / EN 50689:2021)
Operating Time depends on the battery system used:
with 18V system 2 Ah approx. 10hr.
with 18V system 4 Ah approx. 20hr.
Operating Conditions -10°C … 50°C, Luftfeuchtigkeit max. 80% rH, nicht kondensierend, Arbeitshöhe max. 4000 m über NN (Normalnull)
Storage Conditions -10°C … 70°C, Luftfeuchtigkeit max. 80% rH
Dimensions (W x H x D) 120 mm x 160 mm x 144 mm
Weight 786 g (ohne Zubehör)

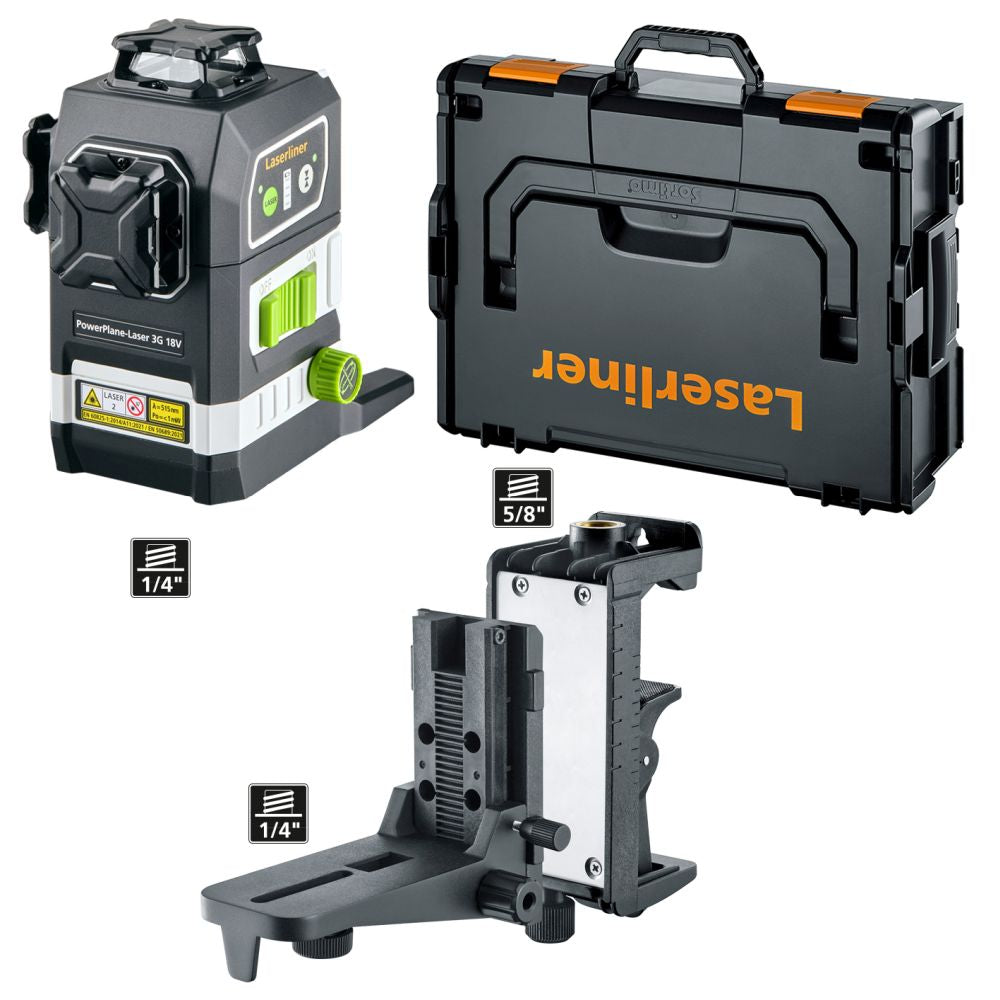

Scope of delivery:
PowerPlane-Laser 3G 18V
CrossGrip Pro
complete in the L-BOXX 136
Battery not included in the scope of delivery
